Mechanical Screening. Gymnasium Acoustics. Industrial Noise Control. Beautiful Design Elements.
Ripple Pan is an economical and attractive way to address issues of noise abatement while arriving at a distinctive look either indoors or out.
PANEL SIZES:
Standard (Coverage) Widths are 32" to 48" (Varies Per Profile).
Standard Length is 12'.
Other Configurations Available--Contact Factory.
FINISHES:
Standard metal are White, Satin Silver, or Gun Metal.
Custom Painted are polyurethane epoxy.
Premo Wood Laminate are Maple, Cherry, and Walnut.
PERFORATIONS:
Standard: 1/8" x 21/64" Staggs.; 14% Open Area

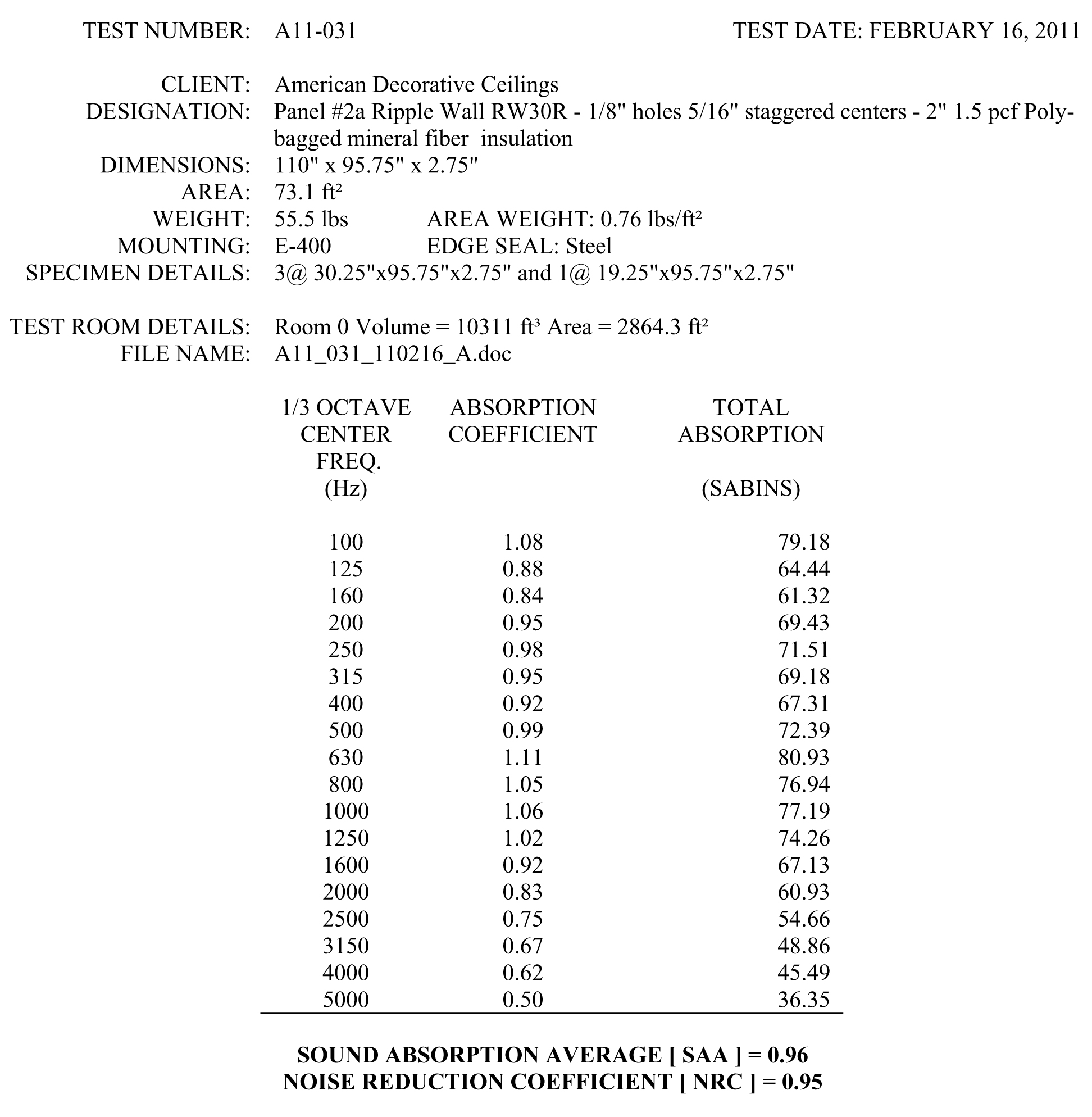

ACOUSTICAL:
Acoustic Insulation as Required for Project Need.
FIRE CODE:
Panel is Class 1 Material per ASTM-E84.
MATERIAL:
Interior Duty from 0.032" to 0.040" Thick Aluminum.
Exterior or Heavy Duty from 0.050" to 0.063" Thick Aluminum.
LEEDs:
Up to 90% for Aluminum Panels
